In Stock
Model: STS-410P-54BB

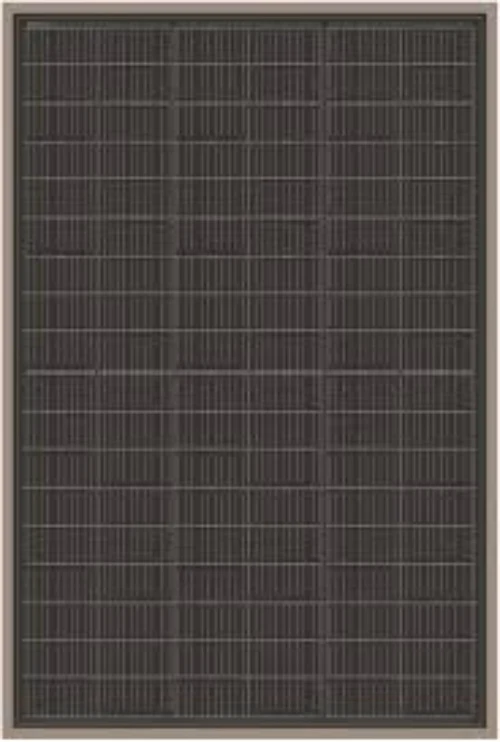

Sinotec 410W STS-410P-54BB
High-efficiency Sinotec solar panel with 21% module efficiency, featuring 108 half-cut monocrystalline PERC cells for optimal performance in residential and commercial installations.
Brand: SinotecType: Monocrystalline PERCPower: 410W
Key Features
- 21% module efficiency for maximum power output
- 108 half-cut monocrystalline PERC cells
- Advanced cell technology for enhanced performance
- IP68 rated junction box with 3 bypass diodes
- Fire resistance rating Type 1 (UL 1703), Class C (IEC 61730)
- 25-year product, workmanship & linear output warranty
- MC4 compatible connectors for easy installation
- AR-coated tempered glass for improved light capture
Technical Specifications
ModelSTS-410P-54BB
Cell TypeMonocrystalline PERC 182×91mm
Number of Cells108 (6×18) Half-Cut
Max Power (Pmax)410W
Open Circuit Voltage (Voc)37.6V
Short Circuit Current (Isc)13.82A
Voltage at Max Power (Vmp)31.4V
Current at Max Power (Imp)13.06A
Module Efficiency21.00%
Temperature Coefficient (Pmax)-0.36%/°C
Operating Temperature-40°F to +185°F (-40°C to +85°C)
Nominal Operating Cell Temp (NOCT)43 ± 2°C
Max System Voltage1000V / 1500V DC
Fire Resistance RatingType 1 (UL 1703), Class C (IEC 61730)
Max Series Fuse Rating25A
Front Glass3.2mm AR-coated tempered glass
FrameAnodized aluminum alloy
Junction BoxIP68, 3 bypass diodes
Cable Length (Portrait)47.24 in (1200 mm)
ConnectorMC4 or compatible
Dimensions (L × W × H)67.80 × 44.65 × 1.18 in
Weight47.4 lbs
Packaging31 pcs/pallet, 806 pcs/40' container
CertificationsUL, IEC 61215 / 61730
Warranty25 Years Product, Workmanship & Linear Output
