In Stock
Model: MNPowerflo16

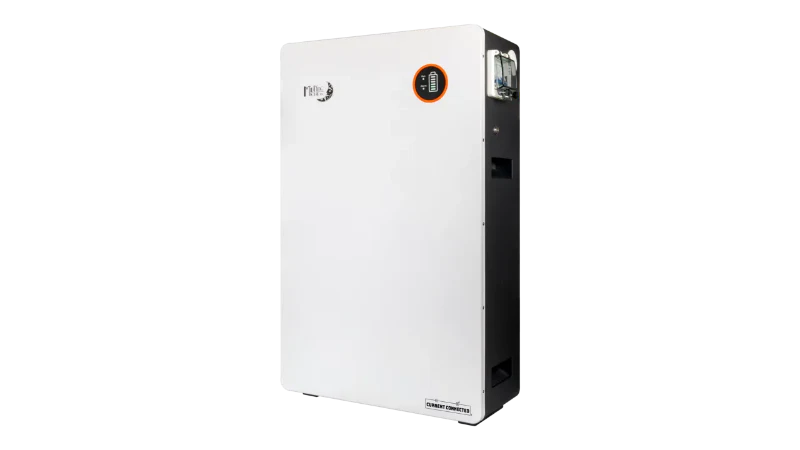

MidNite 16 kWh MNPowerflo16 51.2V Nominal Wall Mount Battery
High-capacity 16 kWh lithium battery system with advanced BMS, designed for residential and commercial energy storage applications with wall or floor mounting options.
Brand: MidNiteType: Power:
Key Features
- 16,076 Wh energy capacity for large-scale energy storage
- High cycle life of 8,000 cycles for long-term reliability
- Advanced BMS with comprehensive protection features
- High discharge current capability (210A max)
- Efficient charging with 160A nominal charging current
- Wide operating voltage range (46.4V–57.6V)
- IP65 protection rating for harsh environments
- Flexible installation options (wall or floor mount)
- Multiple communication interfaces (CAN, RS485, RS232)
- Wide operating temperature range (-20°C to 50°C)
- UL 1973, UL 9540A, UL 9540 certified for safety compliance
- Professional-grade construction for commercial applications
- Advanced monitoring and control capabilities
- Scalable design for system expansion
- Comprehensive warranty and support
Technical Specifications
ModelMNPowerflo16
Nominal Voltage51.2V
Nominal Capacity314Ah
Energy Capacity16,076 Wh
Cycle Life8,000 cycles at 77°F (25°C)
Operating Voltage Range46.4V–57.6V
Max. Discharging Current210A
Nominal Charging Current160A
Dimensions (L x W x D)31.50" x 19.69" x 8.94"
Weight284 lbs
IP RatingIP65
Operating Temperature-4°F to 122°F (-20°C to 50°C)
InstallationWall or floor mount
Communication InterfacesCAN, RS485, RS232
CertificationsUL 1973, UL 9540A, UL 9540
